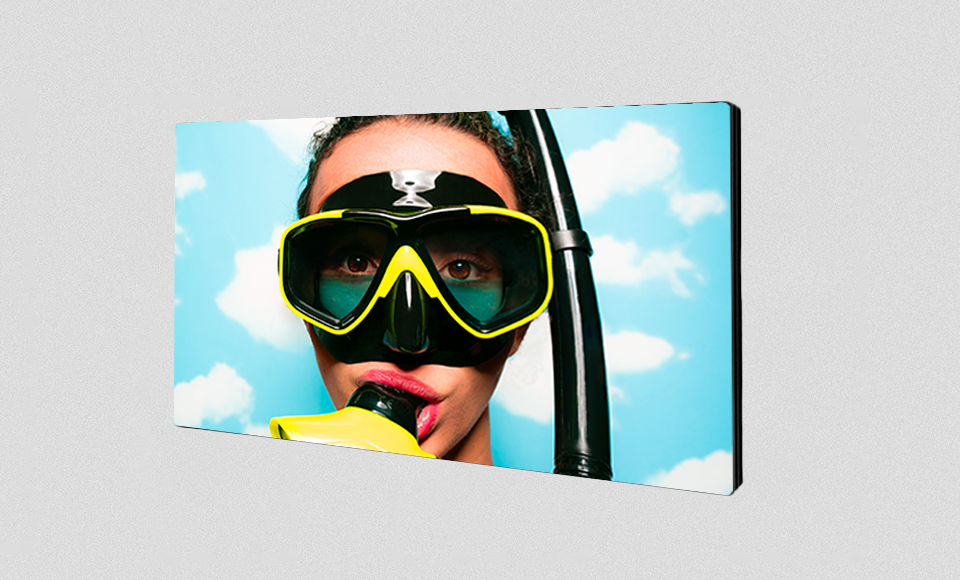

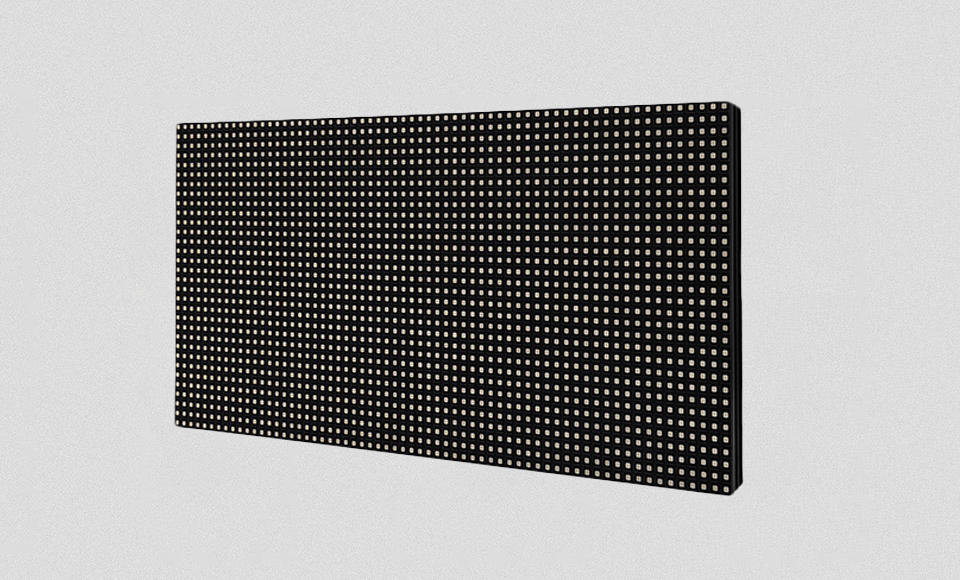

Q SERIES

Small module,
grand display

> aDOPT PWM DRIVER I.4K REFRESH RATE

No waterless ripple

> the kit is made of high grade raw materials

Touchness and not easily deformed

> TECHNICAL PARAMETER

Model No. Q2.5 Pro Q4.E
Pixel Pitch 1.25mm 4mm
LED SMD1010 SMD2525
Pixel Density 540 000pixel/㎡ 62500pixel/㎡
Brightness  450nits 4500nits
Module Resolution
256*128
80*40
Module Size 320*160 320*160
Module Weight(KG) 0.52 0.52
Max Current 6.6 10.34
Screen Power Consumption(W/M^2) 580 909
Optimum Viewing Distance 1.3 4
Refresh Rate 38.40 1920
Grey Scale 14.16
